| Ref no. |
|
Name |
Description |
Code |
Quantity |
|
|

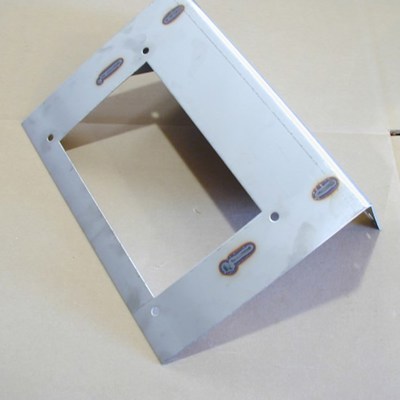

1 |
|

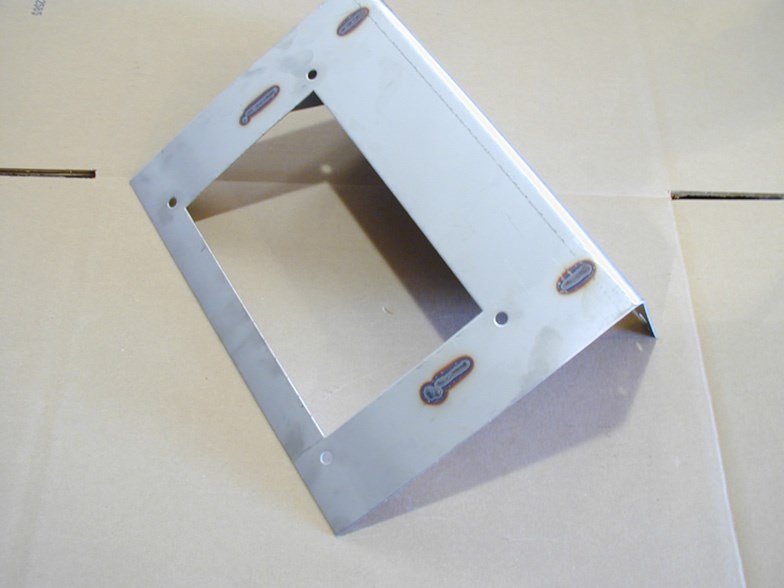

Control Box Mounting Bracket
|
Control Box Mounting Bracket (Stainless Steel ) For Aq1 /Aq2Control Box Without Tiv /Aiv |
711000 |
|
|
|
2 |
|

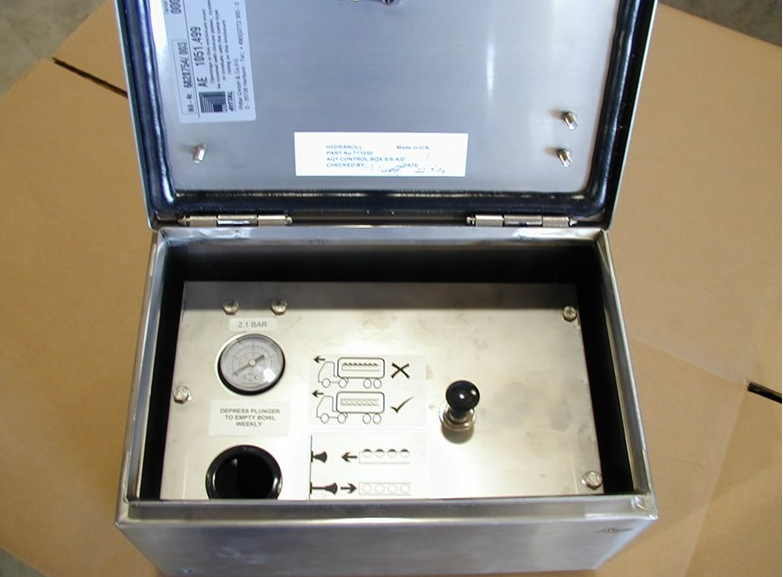

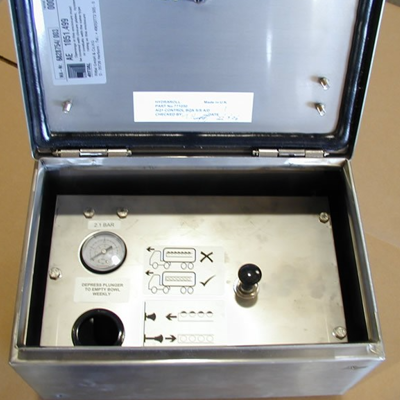

Control Box Complete
|
Aq1;Stainless Steelcontrol Box Complete |
771050 |
|
|
|
3 |
|
Control Box Complete (with Tive and Aiv)
|
Aq1;Stainless Steel Control Box Complete With Tiv And Aiv |
771064 |
|
|
|
4 |
|
Face Plate
|
Aq1; Stainless Steel Faceplate |
771047 |
|
|
|

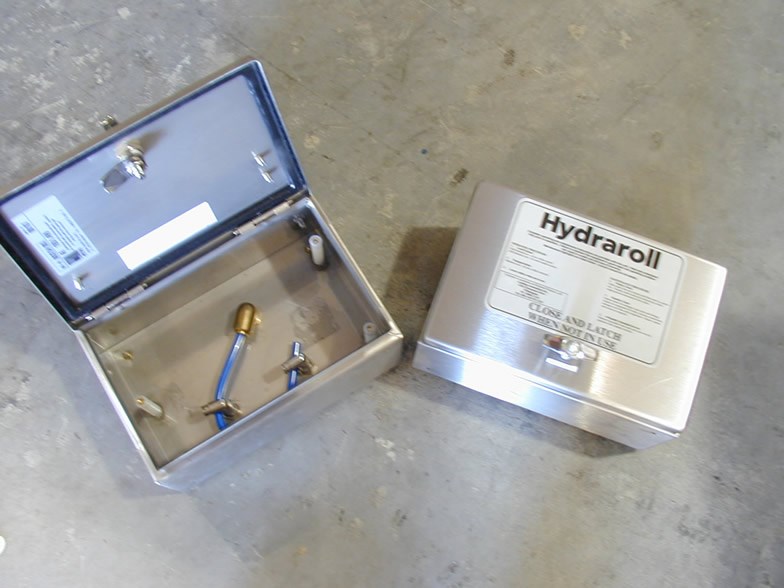

5 |
|

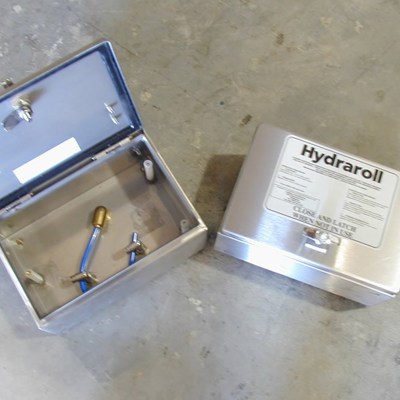

Control Box Enclosure (includes Bulkhead Fittings)
|
Aq1;Stainless Steel Control Box Enclosure.(Includes Bulkhead Fittings) |
771049 |
|
|
|
6 |
|

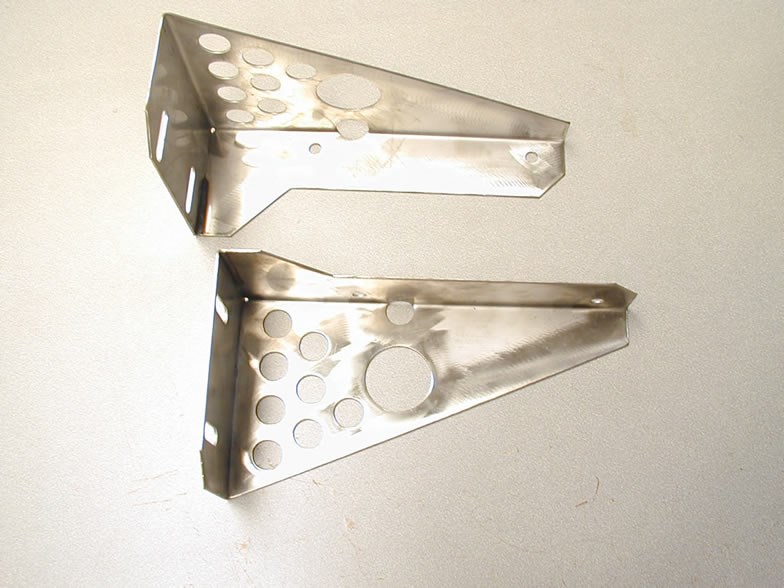

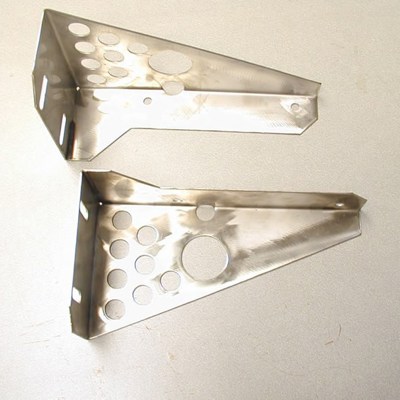

Mounting Bracket
|
Controil Box Mounting Bracket(Stainless Steel 2 Piece) For Aq1/Aq2 Box With Tiv/Aiv |
711009 |
|
|
|

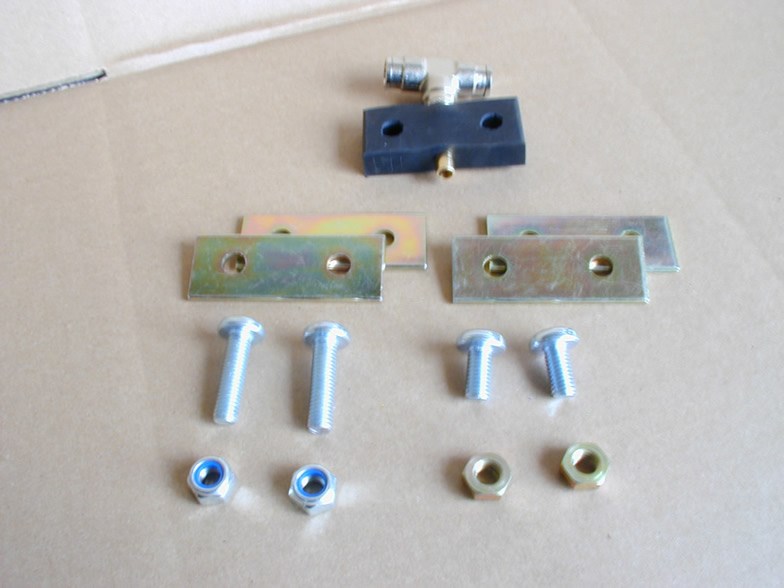

7 |
|

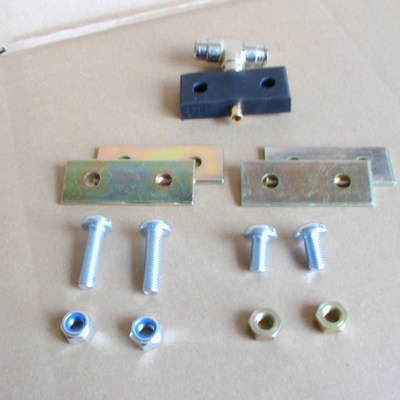

Air Bag Clamp Kit
|
2.5” Hydraroll Air Bag Clamp Kit W/ 5/16" Tee |
762001 |
|
|
|

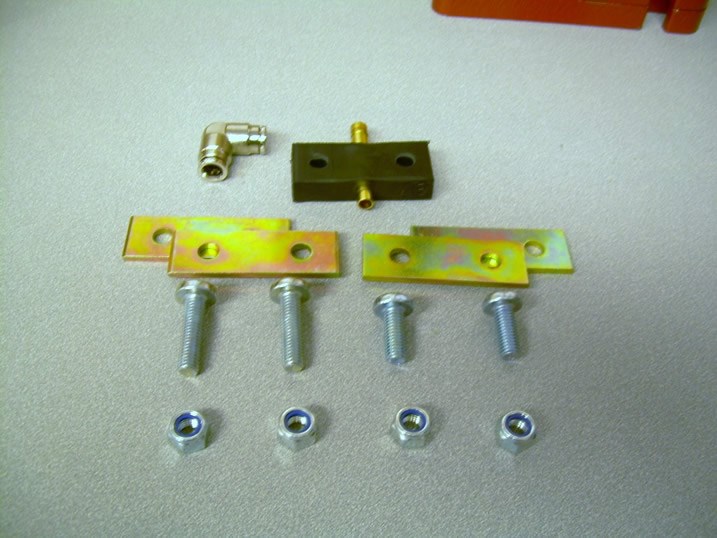

8 |
|

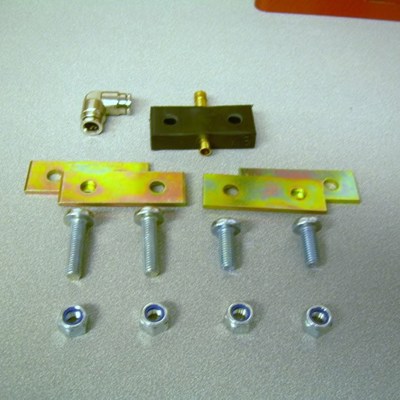

Air Bag Clamp Kit
|
2.5” Hydraroll Air Bag Clamp Kit W/ 5/16" Elbow |
762004 |
|
|
|

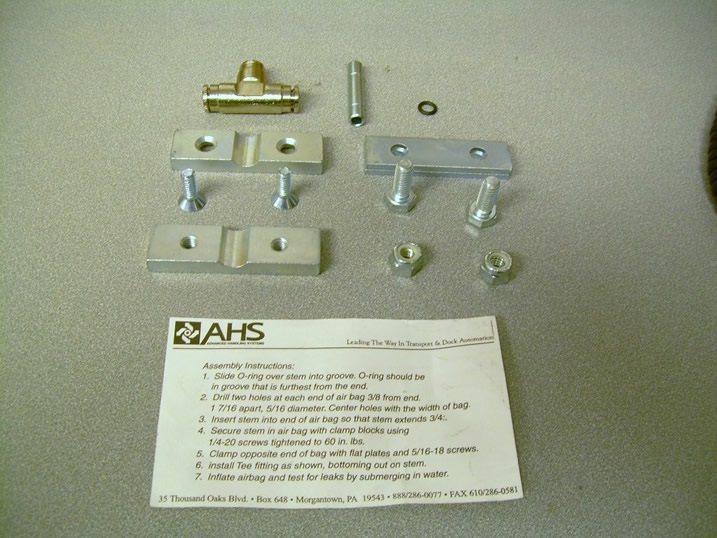

9 |
|
Air Bag Clamp Kit
|
2.5” Ahs Air Bag Clamp Kit W/ 5/16” Tee |
762013 |
|
|
|

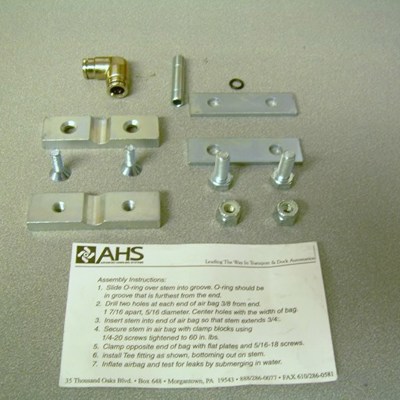

10 |
|

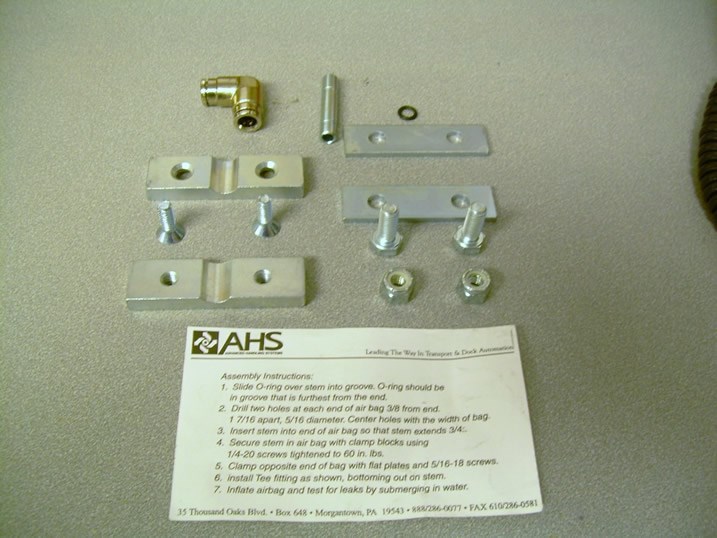

Air Bag Clamp Kit
|
2.5” Ahs Air Bag Clamp Kit W/ 5/16” Elbow |
762014 |
|
|
|
11 |
|

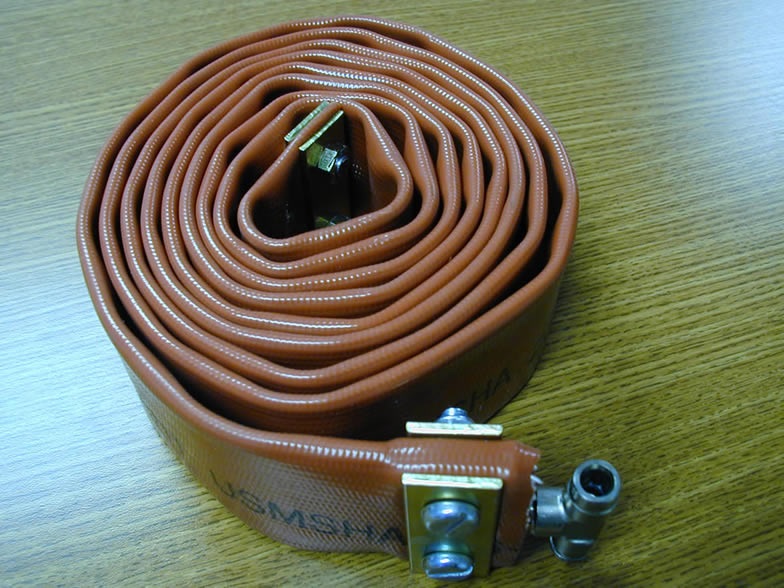

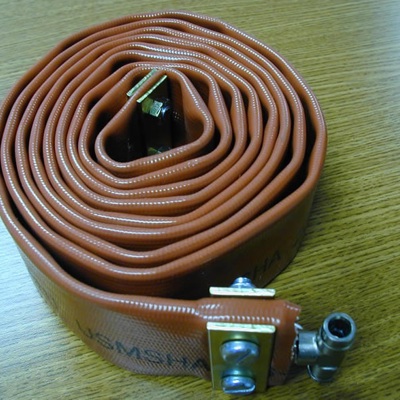

Air Bag Assembly Complete
|
Hydraroll – Ahs Airbag Assembly Complete.For 10’6” Module With 5/16” Push In Tee |
760008 |
|
|
|

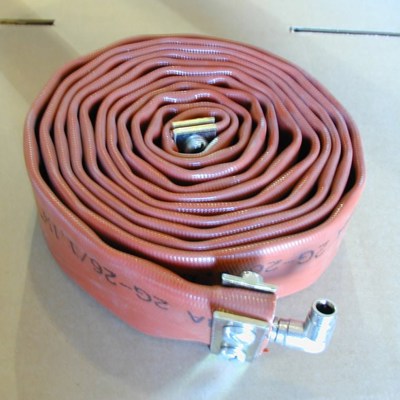

12 |
|

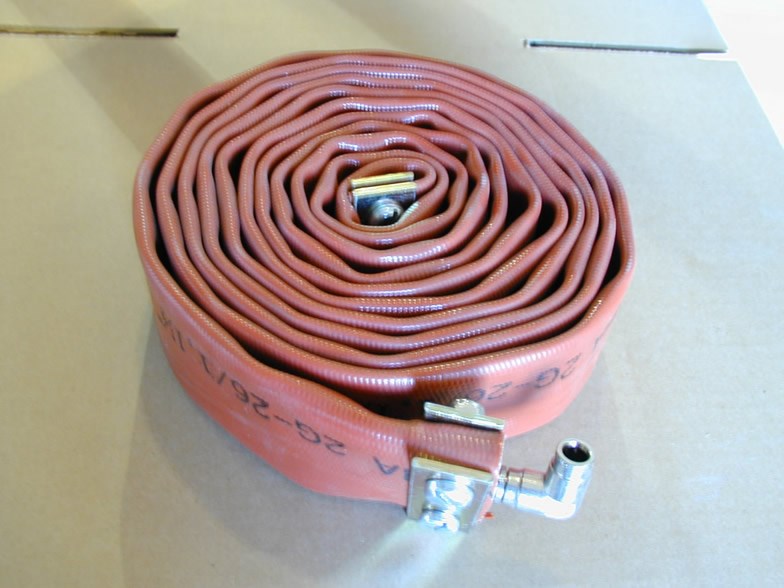

Air Bag Assembly Complete
|
Hydraroll – Ahs Airbag Assembly Complete.For 13’ Module With 5/16” Push In Elbow |
760057 |
|
|
|
13 |
|

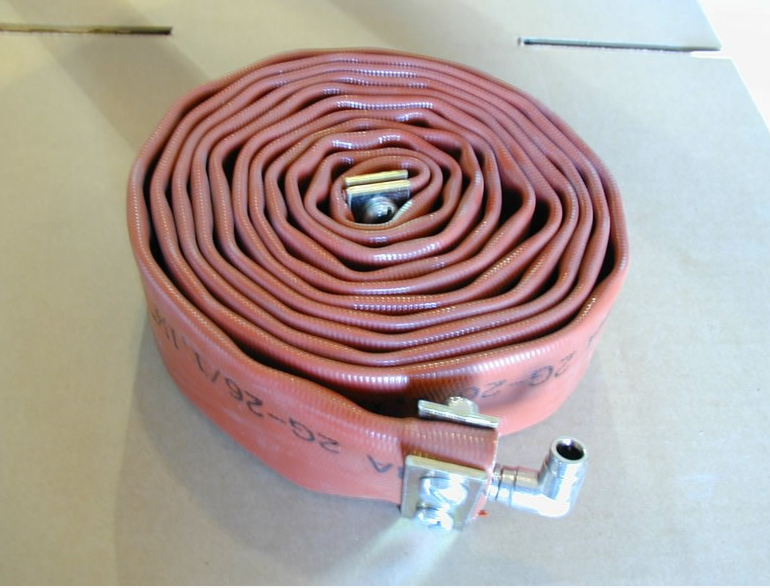

Air Bag Assembly Complete
|
Hydraroll – Ahs Airbag Assembly Complete For 13’2” Module With 5/16” Push In Elbow |
760018 |
|
|
|

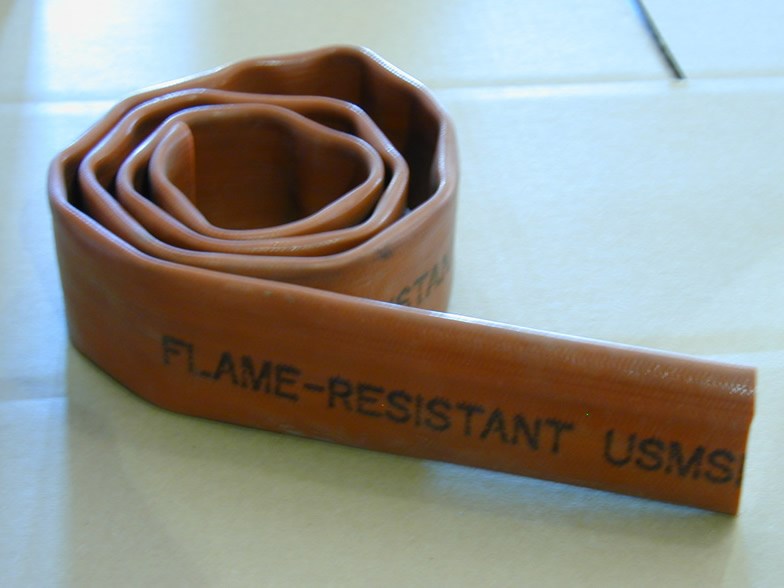

14 |
|
Air Bag Assembly Complete
|
Hydraroll – Ahs Air Bag; 2.5" Flat; Red; Roll Form; (300 Ft Rolls) For In House Airbag Assembly |
760006 |
|
|
|
15 |
|

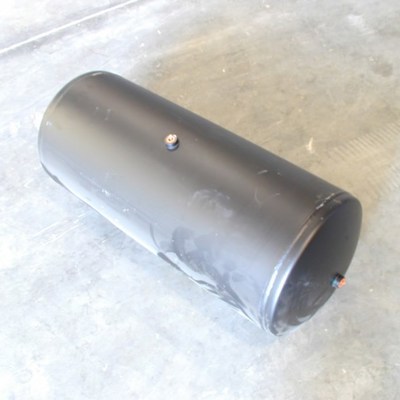

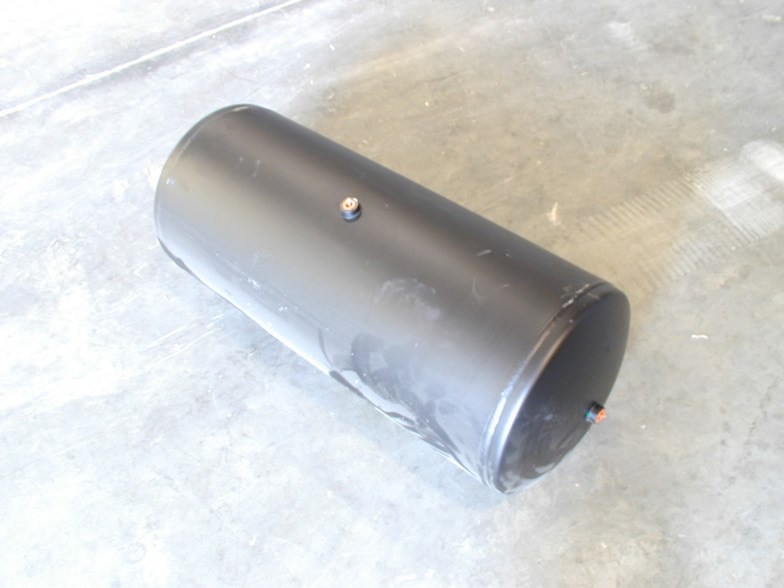

Airtank
|
Airtank With 3/8” Fpt Endports And 1/4” Fpt Drain Port |
770002 |
|
|
|
16 |
|

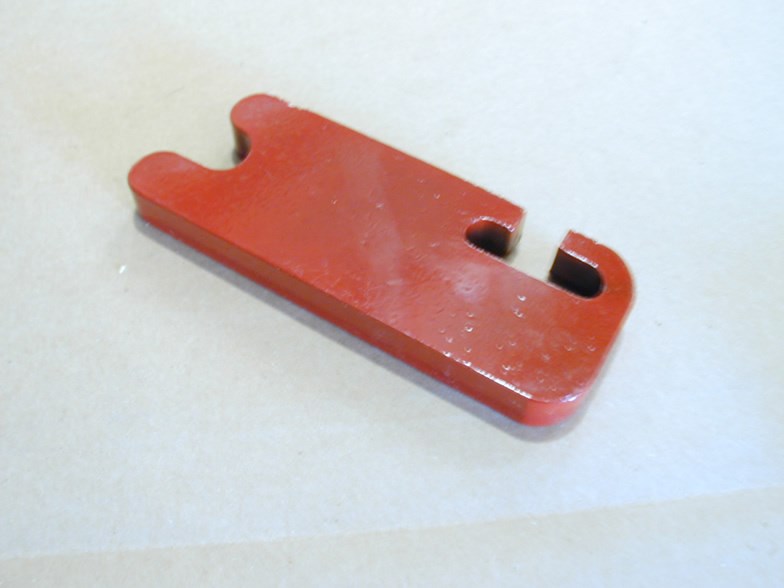

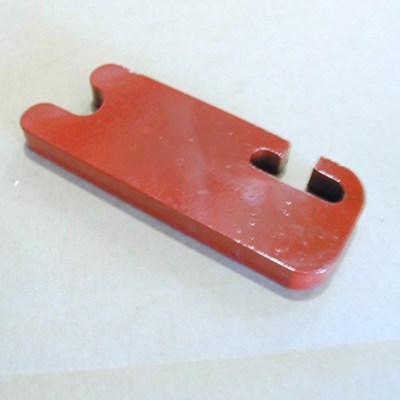

Winged Pallet Stop Replacement Blade
|
5/8” Thick “Winged” Pallet Stop Replacement Blade |
710015 |
|
|
|
17 |
|
Standard Pallet Stop Replacement Blade
|
5/8” Thick “Standard” Pallet Stop Replacement Blade |
710004 |
|
|
|
18 |
|
Pallet Stop Assembly with Standard Blade
|
Pallet Stop Assembly With 1” Thick “Standard” Blade |
710005 |
|
|
|
19 |
|
Standard Pallet Stop Replacement Blade
|
1” Thick “Standard” Pallet Stop Replacement Blade |
710007 |
|
|
|

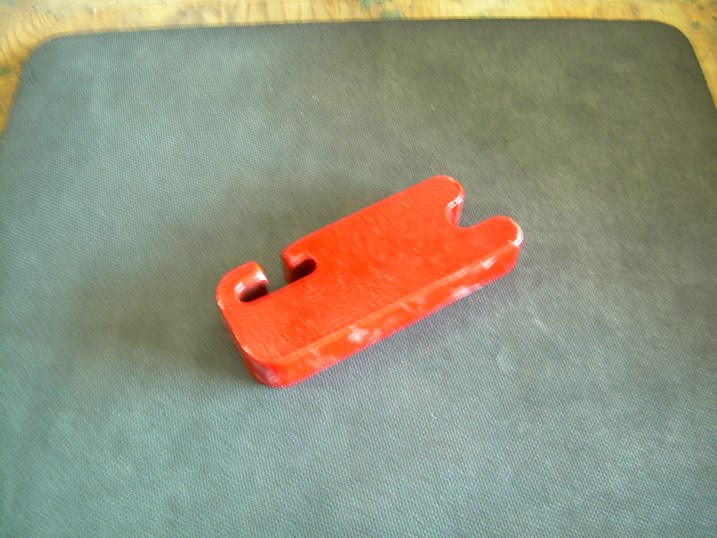

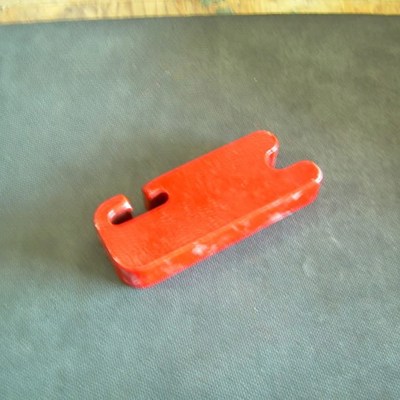

20 |
|
Winged Pallet Stop Replacement Blade
|
1” Thick “Winged” Pallet Stop Replacement Blade |
710011 |
|
|
|
21 |
|

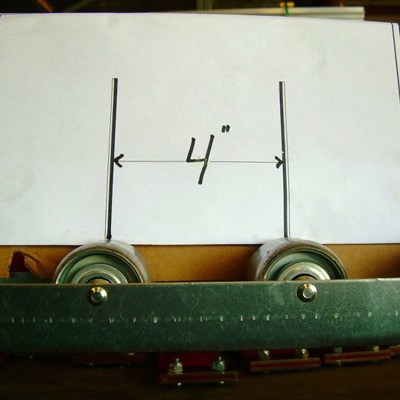

MK 4, Series 4, Roller Cradle Assmebly
|
Mk4,Series 4,Roller Cradle Assembly 4” Pitch, 15 Rollers,Inlet Endis A Mate To Top Plate Part# 741005 |
742005 |
|
|
|

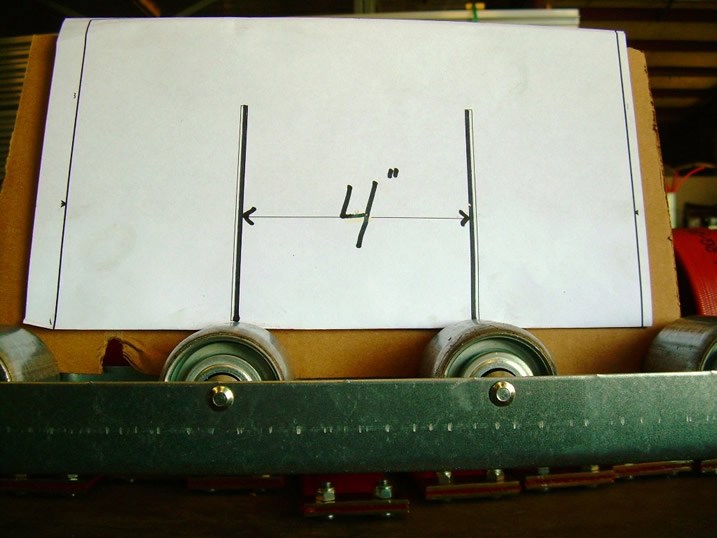

22 |
|
MK 4, Series 4, Roller Cradle Assmebly
|
Mk4,Series 4,Roller Cradle Assembly 4” Pitch, 16 Rollers,Clamp End Is A Mate To Top Plate Part# 741015 |
742003 |
|
|
|
23 |
|

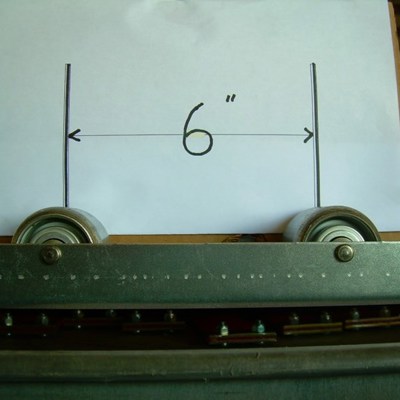

MK 4, Series 4, Roller Cradle Assmebly
|
Mk4,Series 4,Roller Cradle Assembly 6” Pitch, 10 Rollers,Inlet Endis A Mate To Top Plate Part# 741006 |
742006 |
|
|
|

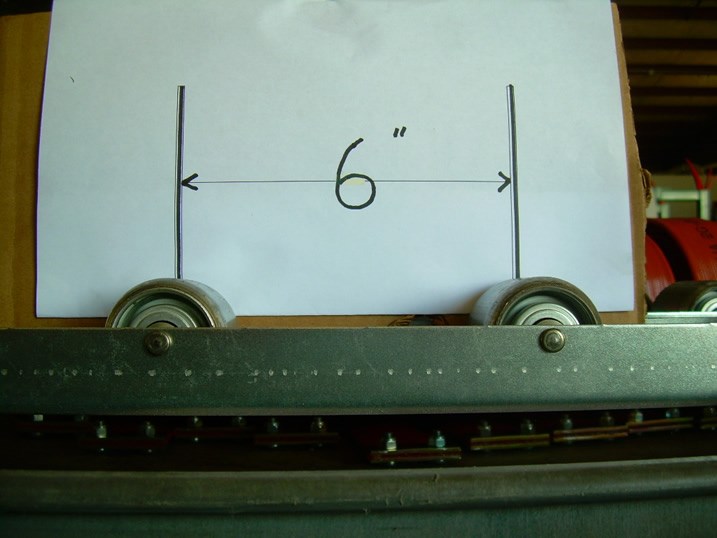

24 |
|
MK 4, Series 4, Roller Cradle Assmebly
|
Mk4,Series 4,Roller Cradle Assembly 6” Pitch, 11 Rollers,Clamp End Is A Mate To Top Plate Part# 741007 |
742007 |
|
|
|
25 |
|

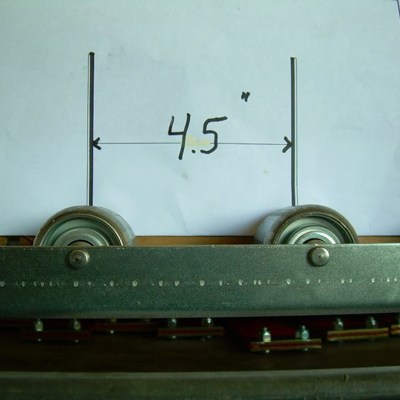

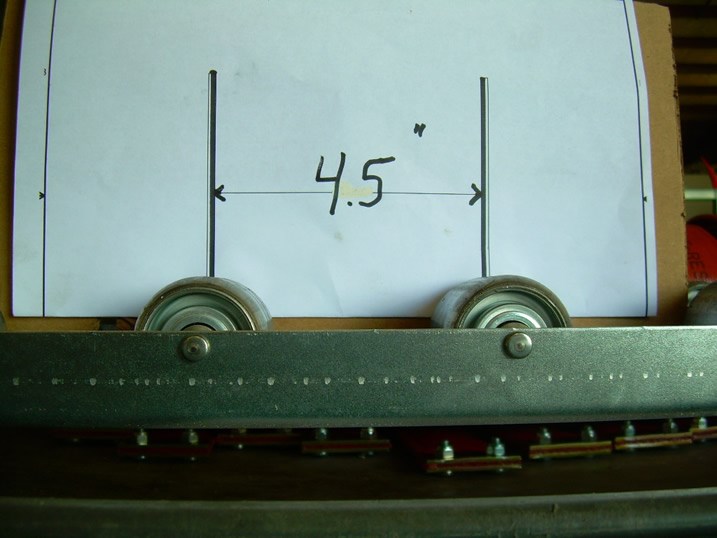

MK 4, Series 5, Roller Cradle Assmebly
|
Mk4,Series 5,Roller Cradle Assembly 4.5” Pitch, 14 Rollers, Is A Mate To Top Plate Part# 741044 |
742020 |
|
|
|

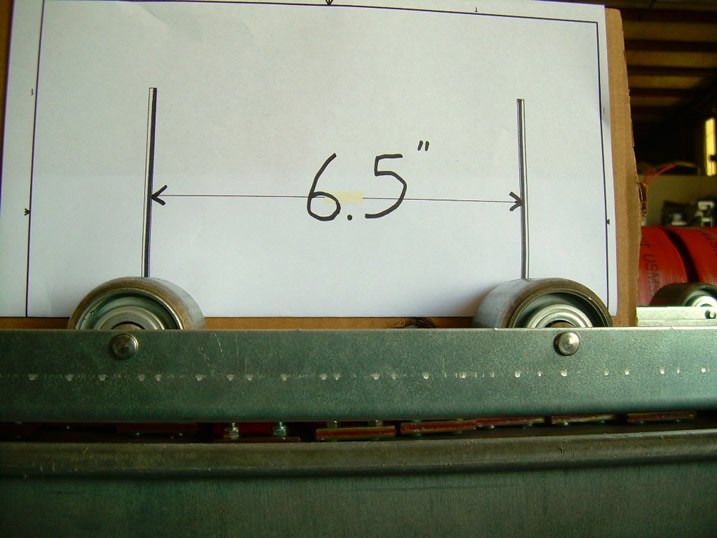

26 |
|
MK 4, Series 5, Roller Cradle Assmebly
|
Mk4,Series 5,Roller Cradle Assembly 6.5” Pitch, 10 Rollers, Is A Mate To Top Plate Part# 741045 |
742021 |
|
|
|
27 |
|

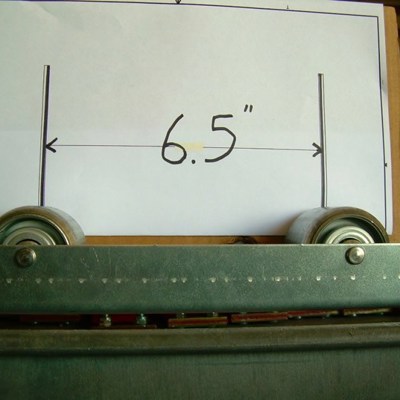

MK 4, Series 5, Roller Cradle Assmebly
|
Mk4,Series 5,Roller Cradle Assembly,6.5” Pitch, 5 Rollers,For The Clamp End Of A 13’2” Long Module Is A Mate To Top Plate Part# 741047 |
742023 |
|
|
|
28 |
|
MK 4, Series 4, Top Plate (Folded)
|
Mk4,Series 4,Top Plate,(Folded) 4” Pitch,15 Roller Openings, Inlet End, 59.5” Long. Is A Mate To Roller Cradle Part# 742005 |
741005 |
|
|
|
29 |
|
MK 4, Series 4, Top Plate (Folded)
|
Mk4,Series 4,Top Plate,(Folded) 6” Pitch,10 Roller Openings, Clamp End, 59.5” Long. Is A Mate To Roller Cradle Part# 742006 |
741006 |
|
|
|
30 |
|

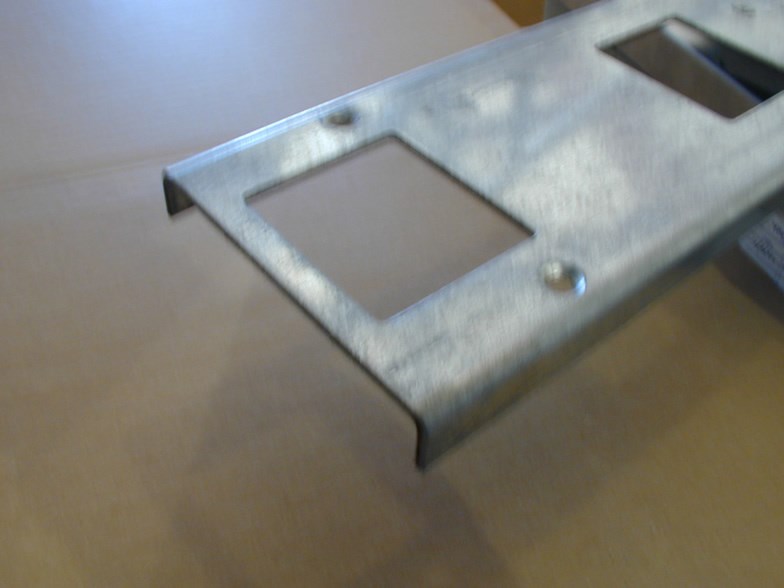

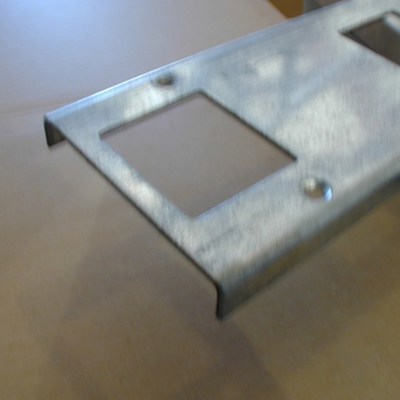

MK 4, Series 4, Top Plate (Folded)
|
Mk4,Series 4,Top Plate,(Folded) 6” Pitch,11 Roller Openings, Clamp End, 64” Long. Is A Mate To Roller Cradle Part# 742007 |
741007 |
|
|
|

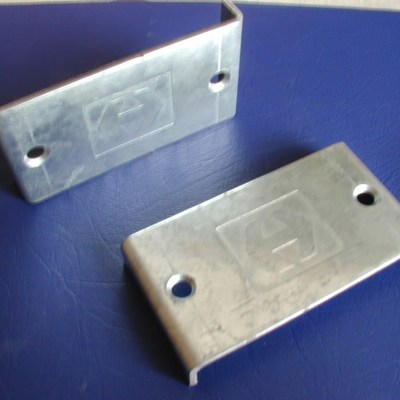

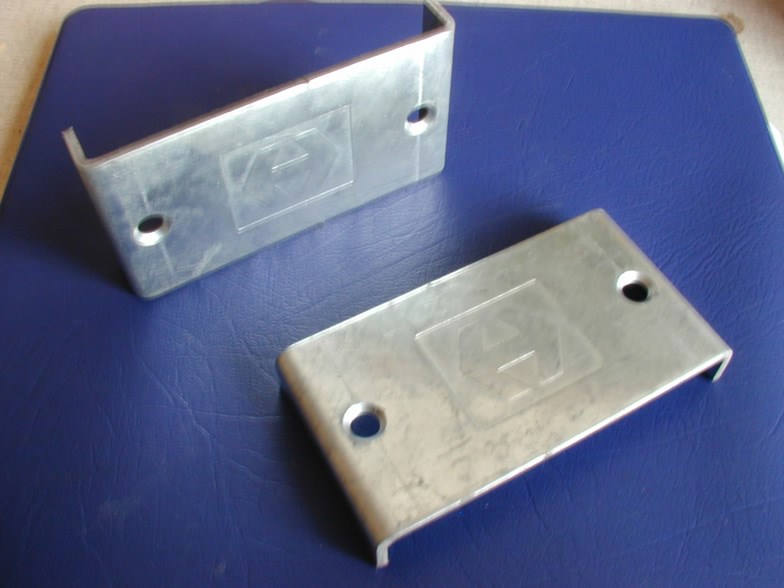

31 |
|
MK 4, Series 4, Top Plate (Folded)
|
Mk4,Series 4,Top Plate,(Folded) Logo Plate, Normally Covers The Inlet End Of The Module. |
741012 |
|
|
|

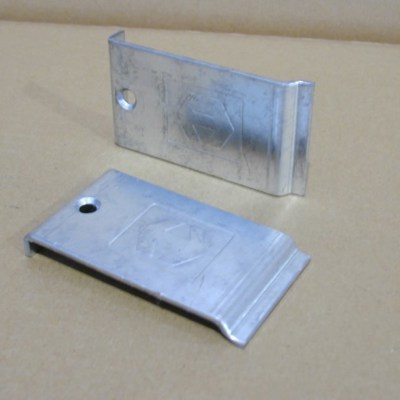

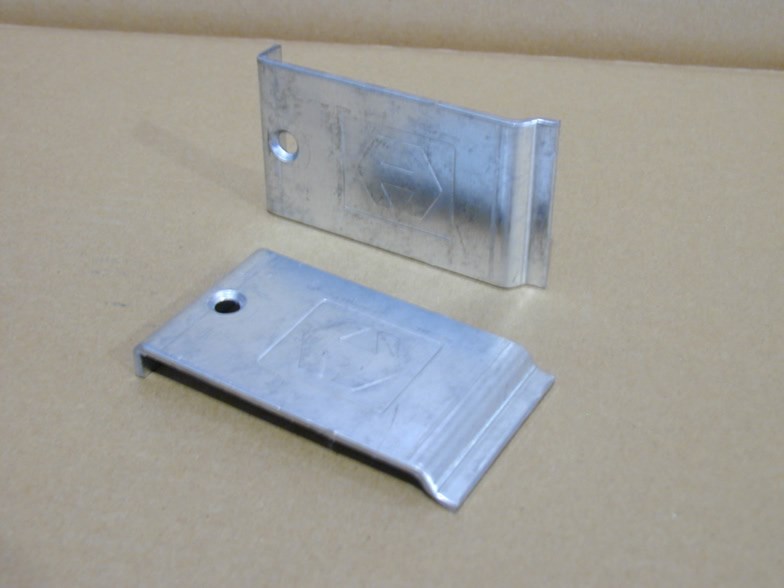

32 |
|
MK 4, Series 4, Top Plate (Quick Release)
|
Mk4,Series 5,Top Plate,(Quick Release) Logo Plate, Normally Covers The Inlet End Of The Module |
741043 |
|
|
|

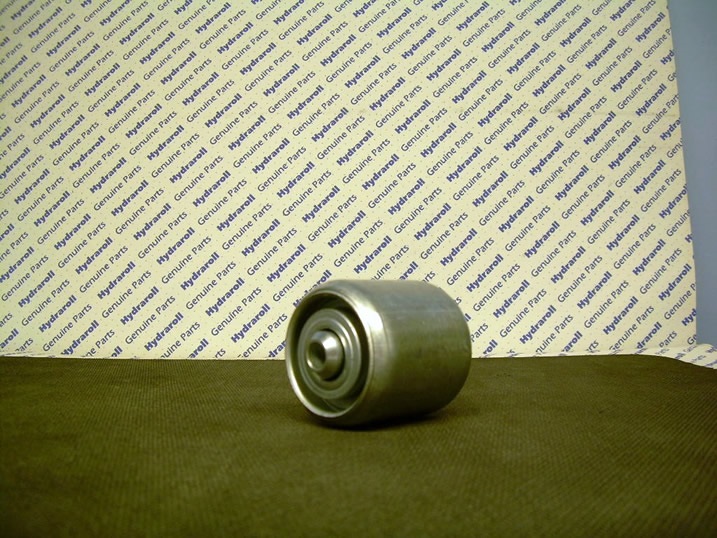

33 |
|

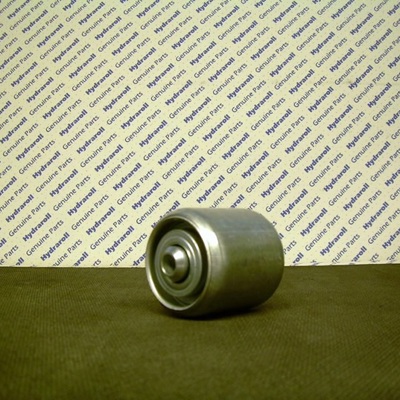

MK 4 Replacement Roller
|
Mk4 Replacement Roller, 2” Wide , Needs Roller Pin (Axle) Pt# 743001 |
743002 |
|
|
|

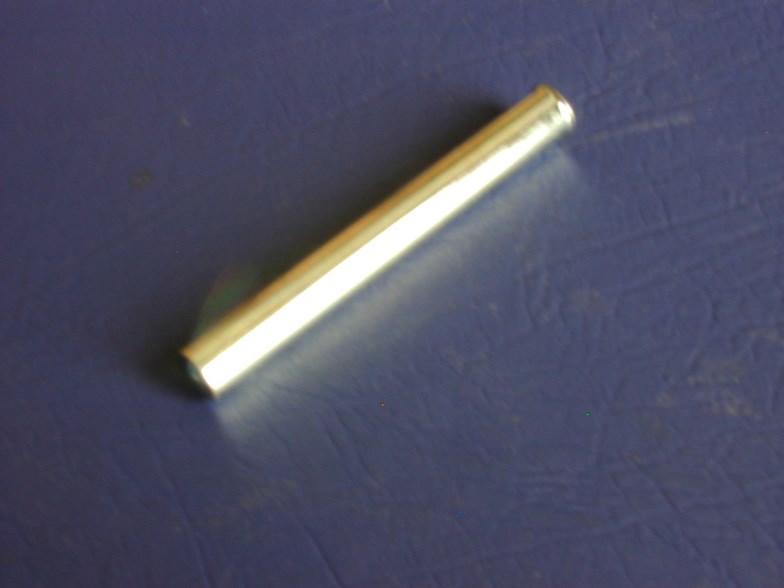

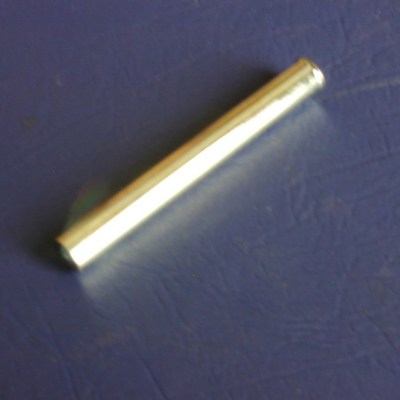

34 |
|
MK 4 - MK 21 Replacement Roller Pin (Axle)
|
Mk4-Mk21 Replacement Roller Pin (Axle) , Used For Roller Part# 743002 And Roller Part# 803003 |
743001 |
|
|
|

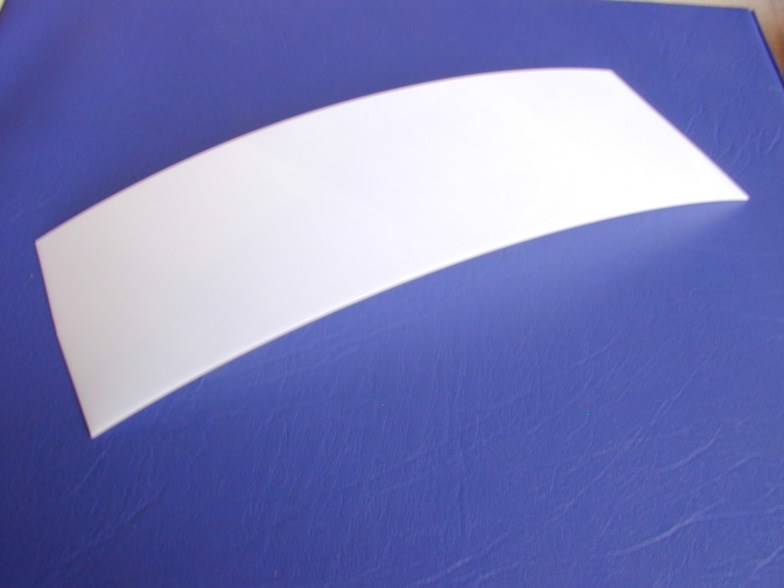

35 |
|

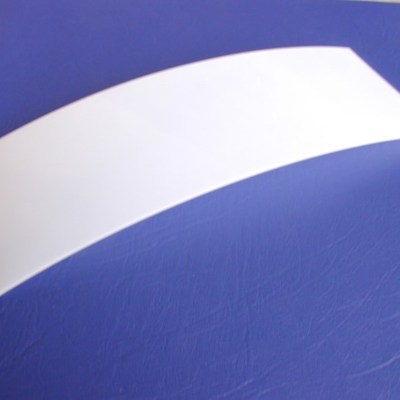

Acetal Strip
|
Acetal Strip, Mk4-Mk21 ,.02” X 2.8125” Wide. |
714007 |
|
|
|
36 |
|
Pressure Protection Valve
|
Pressure Protection Valve, Crossmember Mounted With Aiv. (Replaced With Part# 772053) |
772016 |
|
|
|
37 |
|
Pneumatic Filter / Regulator Replacement
|
Pneumatic Filter / Regulator Replacement For Control Box Comes With Fittings And Mounting Bracket. |
772017 |
|
|
|
38 |
|
Tiv Manifold Assembly
|
Tiv Manifold Assembly – Comes With Quick Exhaust Valve, Ball Valves And Fittings As Shown. |
772018 |
|
|
|
39 |
|
Autodown Control Valve
|
Autodown Control Valve Replacement For Control Box. Knob Is Included. |
772024 |
|
|
|
40 |
|
Filter Regulator Gauge
|
Filter Regulator Gauge Replacement(0-60 Psi,0-4 Bar) |
772008 |
|
|
|
41 |
|
OD Push in Straight Coupling
|
5/16” Od Push In Straight Coupling |
773007 |
|
|
|
42 |
|
OD Push in Plugs
|
5/16” Od Push In Plugs (Two Styles Shown) |
773009 |
|
|
|
43 |
|
OD Push in Elbow
|
5/16” Od Push In 90 Deg Elbow |
773010 |
|
|
|
44 |
|
Top plate Screw
|
Top plate Screw Top Plate Screw,Stainless Steel, M6 X 15Mm Torx Head With Thread Sealant. |
943003 |
|
|
|
45 |
|

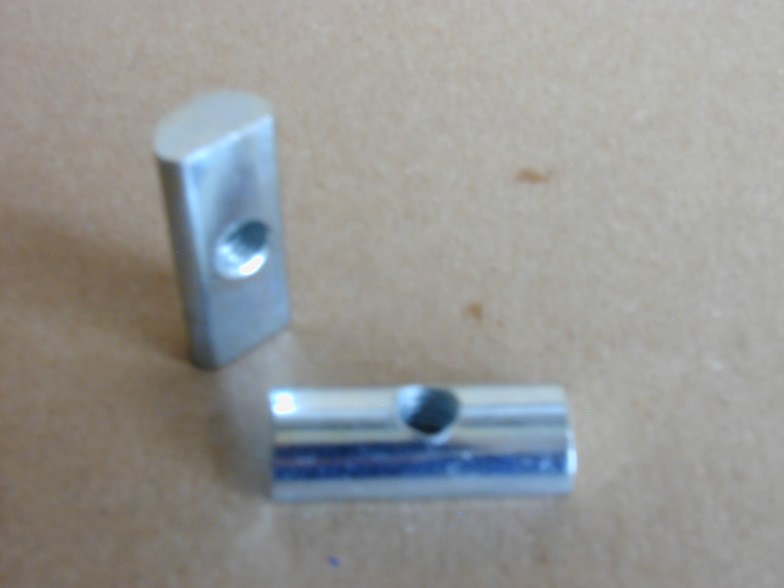

Drop in Nutbars
|
Drop In Nutbars 6Mm |
944004 |
|
|
